Hey there! As a supplier of CNC systems for truss lathes, I've had my fair share of experiences and insights into how these systems handle multiple tool operations. In this blog, I'm gonna break it down for you, sharing the ins and outs of this process.
First off, let's talk about what a truss lathe is. A truss lathe is a specialized machine used in various industries, especially in manufacturing components that require precision machining. It's capable of creating complex shapes and designs on different materials. And that's where the CNC system comes in. A Computer Numerical Control (CNC) system is like the brain of the truss lathe, controlling every movement and operation with high precision.
When it comes to multiple tool operations, there are several key aspects that the CNC system for a truss lathe has to handle. One of the most important things is tool selection. The CNC system needs to be able to identify which tool is required for a particular operation at the right time. This involves a pre - programmed tool library that stores information about each tool, such as its shape, size, and cutting capabilities.
Let's say we're working on a complex part that requires different types of cutting, drilling, and threading operations. The CNC system will refer to the tool library and select the appropriate tool for each step. For example, if we need to drill a hole, it'll pick the drill bit from the tool magazine and position it correctly on the workpiece.
Another crucial aspect is tool path planning. Once the tool is selected, the CNC system has to figure out the best path for the tool to follow. This path is determined by the design of the part and the requirements of the operation. The system uses algorithms to calculate the most efficient route that minimizes the machining time while maintaining high accuracy.
For instance, when milling a surface, the CNC system will plan a path that ensures uniform cutting across the entire surface. It takes into account factors like the feed rate, spindle speed, and the depth of cut. These parameters are adjusted according to the material of the workpiece and the type of tool being used.
Tool changeover is also a significant part of multiple tool operations. The CNC system has to manage the process of swapping one tool for another smoothly and quickly. This is usually done using an automatic tool changer (ATC). The ATC is designed to hold multiple tools and can transfer them to the spindle in a matter of seconds.
The CNC system coordinates with the ATC to ensure that the correct tool is loaded at the right time. It sends signals to the ATC to move the required tool into position and then attaches it to the spindle. This process is highly automated, which reduces the downtime between tool changes and increases the overall productivity of the truss lathe.
Now, let's talk about some of the advanced features that our CNC systems offer for multiple tool operations. We have a user - friendly interface that allows operators to easily program and modify the tool operations. They can input the design specifications of the part, select the tools, and set the machining parameters with just a few clicks.
Our systems also support real - time monitoring. This means that the operator can keep an eye on the machining process and make adjustments if necessary. For example, if the cutting force is too high, the system can automatically reduce the feed rate to prevent tool wear and damage to the workpiece.
In addition, we offer compatibility with various types of tools. Whether you're using standard cutting tools or specialized custom - made tools, our CNC system can handle them all. This gives our customers the flexibility to use the tools that best suit their specific machining needs.

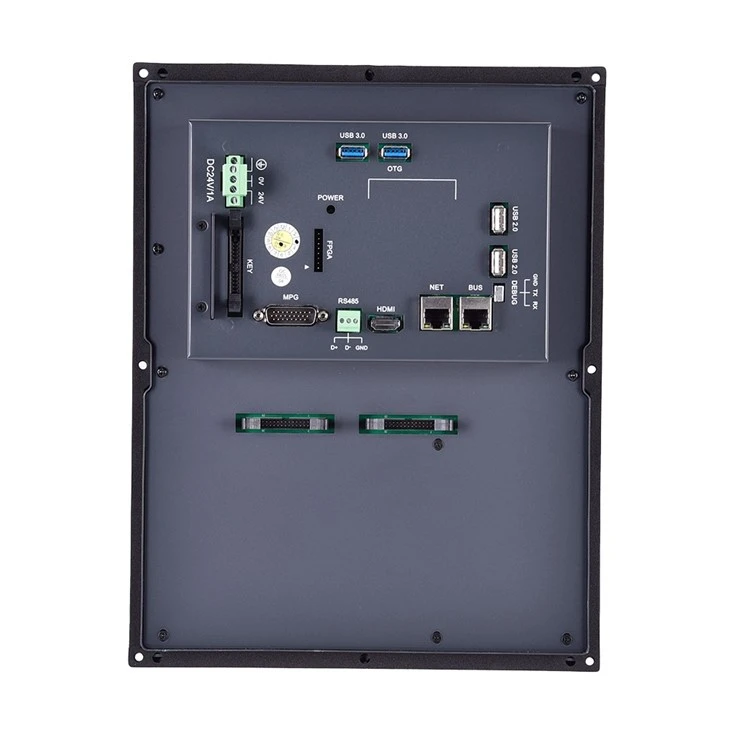

If you're looking for related products, we have some great options. Check out our Compression Spring Machine Controller, which is designed to provide precise control for spring manufacturing processes. Also, our 8 Inch CNC Turning And Milling System（Vertical） is a powerful solution for turning and milling operations. And for those in the spring machine industry, our Camless Spring Machine Control System offers advanced control features without the need for cams.
If you're interested in learning more about our CNC systems for truss lathes or are thinking about a purchase, don't hesitate to reach out. We're here to answer all your questions and discuss how our systems can improve your machining processes. Whether you're a small - scale workshop or a large - scale manufacturing plant, we have the right solution for you.
In conclusion, handling multiple tool operations in a truss lathe is a complex but highly achievable task with the right CNC system. Our systems are designed to provide high precision, efficiency, and flexibility, making them a great choice for any machining application. So, if you're in the market for a reliable CNC system for your truss lathe, give us a shout and let's start a conversation.
