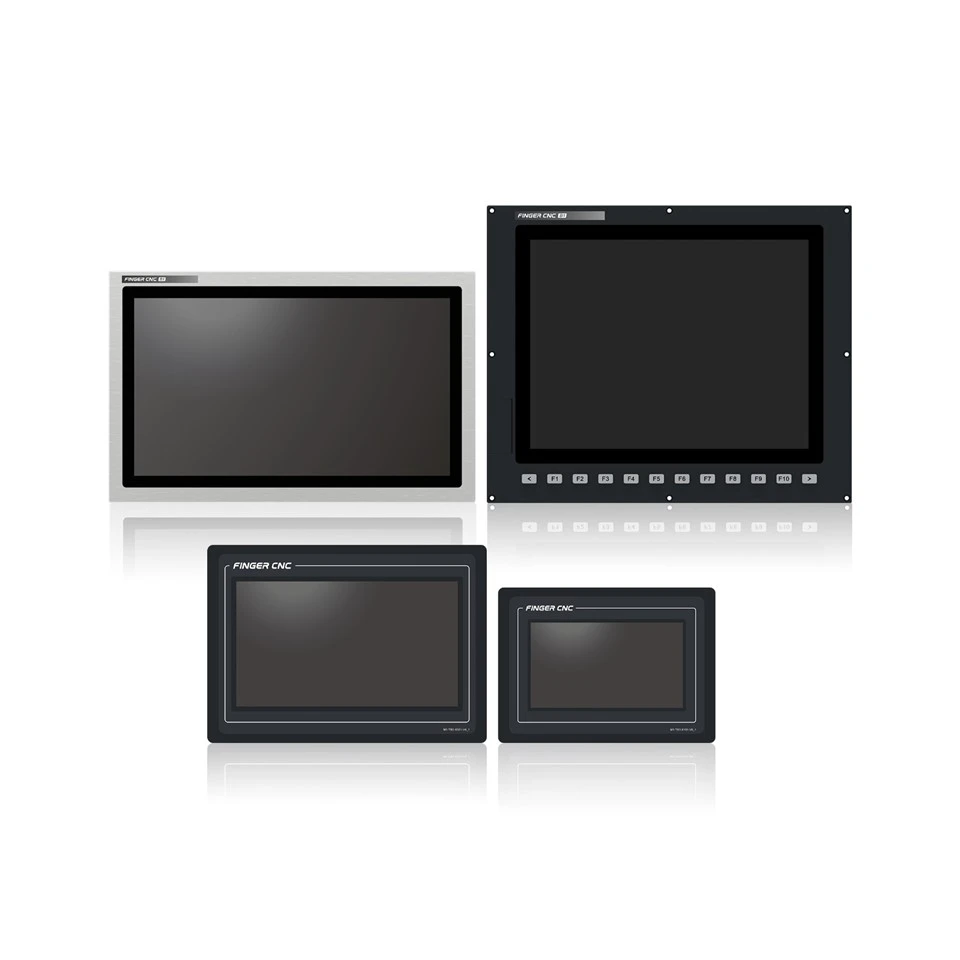

Motion Touch Integrated Machine
Your Professional Motion Touch Integrated Machine Supplier
Our goal is to become your true partner in the field of 220V China. Guangzhou Finger Technology Co., Ltd. is committed to creating high-performance open CNC systems. We have a skilled engineering team dedicated to refining every stage, from product development and process improvement to production oversight, ensuring every product delivered meets rigorous quality and performance standards. The price is competitive and the product is quality-assured, which is a good choice for your long-term cooperation.
Why Choose Us
Production equipment
Our company boasts advanced equipment, including 5-axis machining centers, 6-axis robotic arms, SCARA robots, fiber laser marking machines, 3-axis dispensing machines, and vision inspection systems.
Production market
Our products are highly sought after and exported to countries and regions such as India, the United States, Turkey, South Korea, Malaysia, Singapore, Iran, Brazil, Vietnam, and Russia.
Our services
Our team of experts will recommend the most suitable products according to customer needs and provide detailed consultation, we ensure timely delivery and provide installation guidance, and we provide long-term service support.
Improved efficiency and productivity: Faster speeds and more precise, synchronized movements lead to increased output. Electric camming and electronic gearing allow for faster changeovers and reduced downtime, leading to quicker production runs.
Enhanced precision and quality: Advanced servo systems and electronic camming enable highly accurate positioning and consistent product quality.
Optimized performance
Ai-enhanced motion control systems learn from their environments and optimize movements in real-time, improving overall performance.
Increased reliability and uptime
Improved process stability, predictive maintenance, and fewer connections minimize unplanned failures and service calls.
Greater flexibility and adaptability
Electronic reconfiguration allows for on-the-fly changes to motion profiles, facilitating quick adaptation to changing production needs.
Specification of Motion Touch Integrated Machine
|
Display Size |
7-inch |
10.1-inch |
10.4-inch |
15-inch |
19-inch |
|
Maximum Number of Axes (Including Spindle) |
Standard 6 (Maximum 40) |
Standard 6 (Maximum 40) |
Standard 6 (Maximum 40) |
Standard 6 (Maximum 40) |
Standard 6 (Maximum 40) |
|
Maximum Number of Channels |
Standard 1 (Maximum 16) |
Standard 1 (Maximum 16) |
Standard 1 (Maximum 16) |
Standard 1 (Maximum 16) |
Standard 1 (Maximum 16) |
|
Maximum Number of Interpolated Axes per Channel |
6 |
6 |
6 |
6 |
6 |
|
Maximum Number of Spindles per Channel |
10 |
10 |
10 |
10 |
10 |
|
Operating System |
RT Linux |
RT Linux |
RT Linux |
RT Linux |
RT Linux |
|
Memory |
2GB |
2GB |
2GB |
2GB |
2GB |
|
Program Capacity |
8GB |
8GB |
8GB |
8GB |
8GB |
|
Number of Blocks in Lookahead Buffer |
8000 blocks/s |
8000 blocks/s |
8000 blocks/s |
8000 blocks/s |
8000 blocks/s |
|
Maximum Number of Tool Compensation Groups |
160 groups |
160 groups |
160 groups |
160 groups |
160 groups |
|
Communication Interfaces |
USB/RS485/LAN/WIFI |
USB/RS485/LAN/WIFI |
USB/RS485/LAN/WIFI |
USB/RS485/LAN/WIFI |
USB/RS485/LAN/WIFI |
|
Maximum Expandable I/O |
256/256 (1ms 64 IN/OUT, 4ms 192 IN/OUT) |
256/256 (1ms 64 IN/OUT, 4ms 192 IN/OUT) |
256/256 (1ms 64 IN/OUT, 4ms 192 IN/OUT) |
256/256 (1ms 64 IN/OUT, 4ms 192 IN/OUT) |
256/256 (1ms 64 IN/OUT, 4ms 192 IN/OUT) |
|
Industrial Internet of Things (IoT) |
Optional |
Optional |
Optional |
Optional |
Optional |
|
Absolute Positioning Function |
SSI (6 groups, expandable up to 12 groups) |
SSI (6 groups, expandable up to 12 groups) |
SSI (6 groups, expandable up to 12 groups) |
SSI (6 groups, expandable up to 12 groups) |
SSI (6 groups, expandable up to 12 groups) |
Integration of open UI and PLC platform , allowing customers to freely customize the interface and functions, achieving an unprecedented personalized user experience. Flexible permission allocation greatly enhances system adaptability, enabling each user to customize access permissions based on needs.
Supports graphical simulation, dialog-based programming, and custom M-code functions. Fast execution speed : Short PLC scan time enables rapid response to processing commands, improving processing efficiency.
Automatically track workpiece position through vision , real-time acquisition of position information, making industrial automation control easier. Direct connection to smart cameras , or using PC-BASE mode to achieve visual positioning, flying imaging, and other functions. Connect multiple (8) vision systems , enabling integration of multiple cameras' graphics and data analysis.
Additive manufacturing: Driving ultra-precise movements of printer heads and stages for 3D printing and rapid prototyping, ensuring accuracy and surface quality.
Packaging: Controlling the motion of components in packaging lines for tasks like filling, sealing, labeling, and palletizing.
Process automation: Automating various industrial processes in heavy industries like metal fabrication or automotive manufacturing for improved product consistency and quality.
Robotics: Controlling robotic arms for tasks such as assembly, picking and placing, material handling, and welding.
Machine tools: Applications like cnc machining, milling, grinding, drilling, threading, turning, and other precision tasks where synchronized control of tool and workpiece motion is crucial.
Material handling and logistics: Automating conveyor systems, sorting systems, gantry loaders, and automated guided vehicles (agvs) in warehouses and distribution centers.
Components of Motion Touch Integrated Machine
Feedback system
Provides real-time data on position, speed, and torque using devices like encoders or resolvers for precise control.
Touchscreen system
This system allows for user interaction through touch input. Key parts are.
Touch sensor/panel
Detects touch input using technologies like capacitive or resistive sensing.
Controller
Converts touch detection into usable signals for the system, interpreting gestures.
Motion control system
This system is responsible for controlled movement. Its components include.
Motion controller
The central unit that manages motion profiles, feedback, and actuator control.
Amplifier or drive
This increases the power of signals from the controller to operate the actuator.
Actuator
Converts electrical energy into mechanical motion, such as servo motors, stepper motors, or linear actuators.
Packing and Shipping of Motion Touch Integrated Machine
|
Packing |
Wooden box |
|
Shipping |
Shipped by road, sea, rail |
