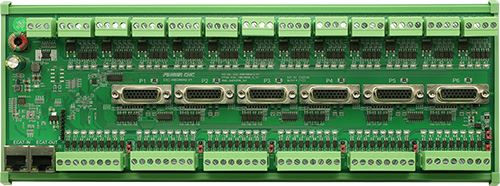

EtherCAT 48-Point Input / 48-Point Output (Transistor) / 6-Axis Control IO Motion Module ESC-I48O48A6-G-V1

1. DC 24V Power Input (5.08 PITCH)

2. Reverse Polarity Protection for Power Supply

3. 48 INPUT:

1) 2-wire input type INPUT, maximum 10mA current drive

2) 3-wire input type INPUT, current provided by external power supply

3) Single-point ESD protection for INPUT

4) INPUT response time <2KHz

5) Supports NPN/PNP switching

4. 48 OUTPUT:

1) FET output

2) Single-point maximum 2A continuous output

3) Supports inductive load

5. 6-Axis Universal Axial Control:

1) Differential pulse control (up to 4MHz)

2) Analog speed closed-loop control (12 BIT -10V~+10V)

3) Differential encoder feedback input (up to 4MHz)

4) 12 BIT -10V~+10V DAC output

5) 12 BIT -10V~+10V ADC input

6) Supports PWM output

7) Supports SSI encoder input

8) Input/Output

A. 2 INPUT:

1) 2-wire input type INPUT, maximum 10mA current drive

2) 3-wire input type INPUT, current provided by external power supply

3) Single-point ESD protection for INPUT

4) INPUT response time <2KHz

5) Supports NPN/PNP switching

B. 2 OUTPUT:

1) FET output

2) Single-point maximum 400mA continuous output

3) Supports inductive load

6. Supports DC Clock Synchronization

7. Supports Repeat

8. EFT Testing: Coupling 4500V Power Supply 3500V (Repeat 2 times)

9. Detachable European 5.08 PITCH Terminal Block

10. INPUT (8PIN)/OUTPUT (4PIN) Anti-Mistake Design
